LEON VALLEY INC.
1100 Peach Street • Coleman, Texas 76834 USA

1-800-772-8559

LVI PANELS

P1800 SERIES

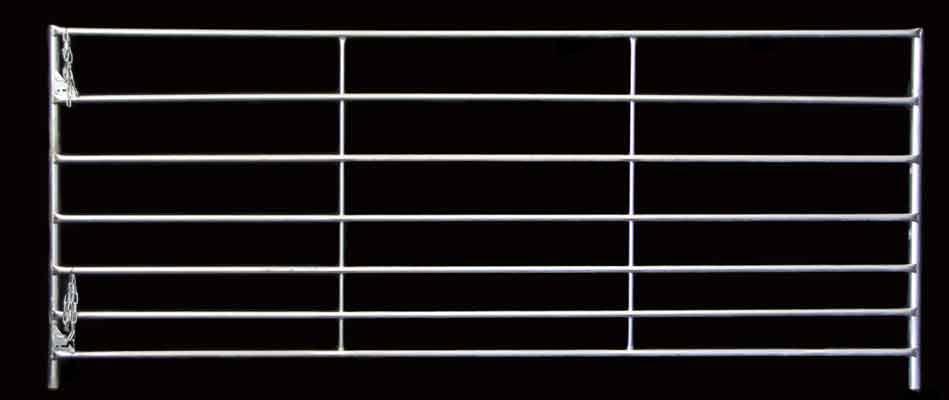

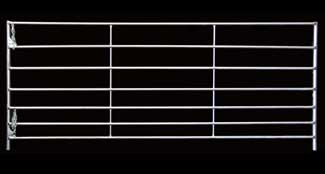

P1810 Panel (Galvanized)

Height:

48"

Length:

10'-0"

Legs:

1" Round Tubing 18 Gauge

Bars:

7 - 1" round tubing 18 gauge pinch cut bars

Braces:

2 - 3/4" Round

Mud Leg:

Approx. Weight:

45 lbs.

Key Features:

Galvanized, Deer Feeder & Sheep/Goat Panel

Primary Use:

Deer, Sheep and Goat

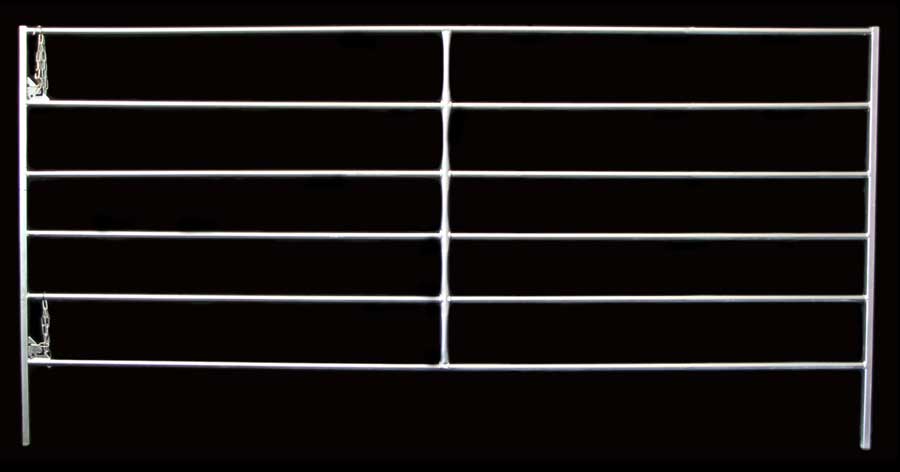

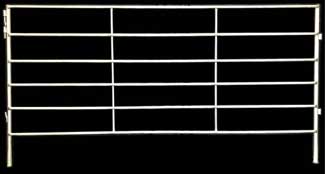

PUT Panel (Galvanized)

Height:

5'-0"

Length:

10'-0"

Legs:

1" square tubing

Bars:

6 - (.922) 1" Round tubing

Braces:

Form Fitted

Mud Leg:

Approx. Weight:

35-40 lbs.

Gauge:

18-20 Guage

Key Features:

Galvanized, Light Duty Utility Panel

Primary Use:

Round Pens, not intended for crowding

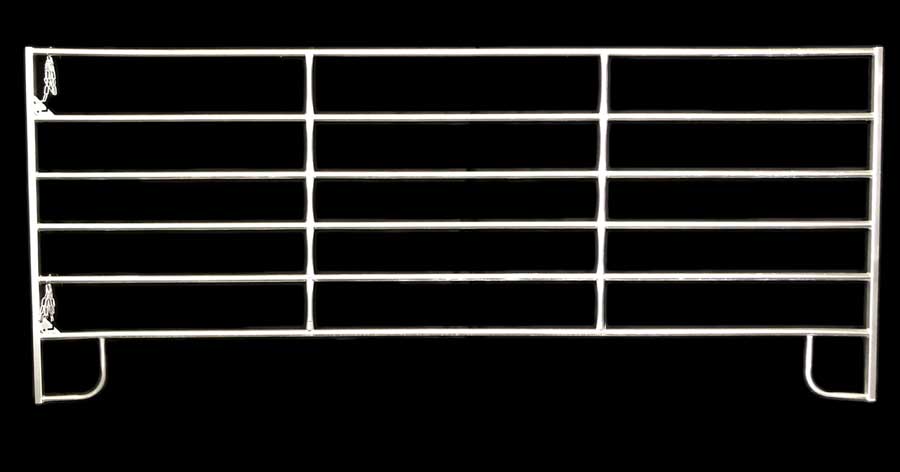

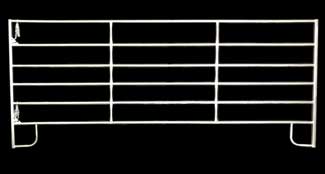

PL Panel (Galvanized)

Height:

5'-0"

Length:

10'-0" or 12'-0"

Legs:

1 1/4" square tubing 18 Gauge

Bars:

6 - 1 1/4" round tubing 20 gauge pinch cut bars

Braces:

Form Fitted

Mud Leg:

Yes

Approx. Weight:

40 lbs.

Key Features:

Galvanized, Medium Duty Panel

Primary Use:

Deer, Sheep and Goat

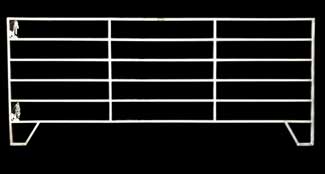

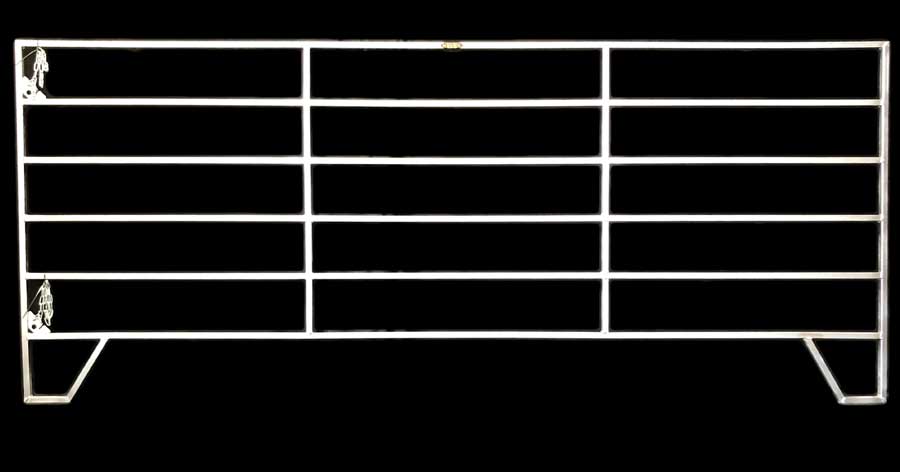

PM Panel (Galvanized)

Height:

5'-0"

Length:

6', 10' or 12'

Legs:

1" Miter Cut Square Tubing 16ga.

Bars:

6 - 1" Square Tubing 16ga.

Braces:

1" Square Tubing 16ga.

Mud Leg:

Yes

Approx. Weight:

65 lbs. (10")
80 lbs. (12")

Key Features:

Galvanized, Medium Duty Panel

Primary Use:

Sheep and Goat Pens

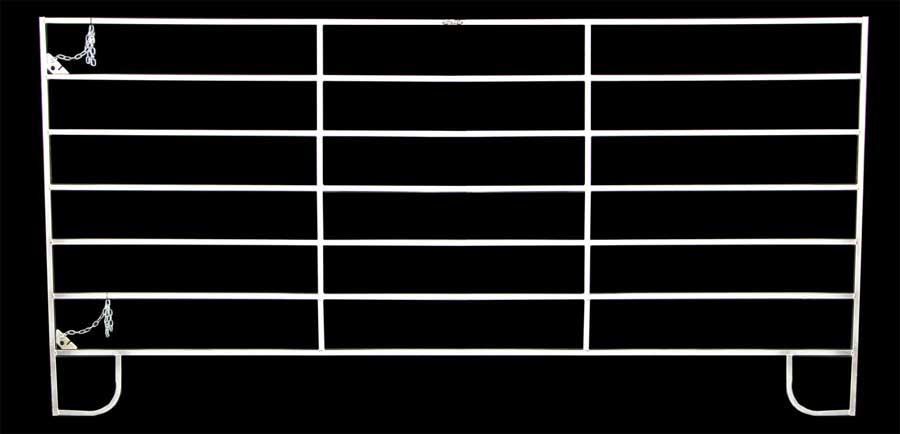

PMT Panel (Galvanized)

6'-0"

Length:

6', 10' or 12'

Legs:

1" Miter Cut Square Tubing 16ga.

Bars:

7 - 1" Square Tubing 16ga.

Braces:

1" Square Tubing 16ga.

Mud Leg:

Yes

Approx. Weight:

80 lbs. (10")
95 lbs. (12")

Key Features:

Galvanized, Medium Duty Panel

Primary Use:

Sheep and Goat Pens

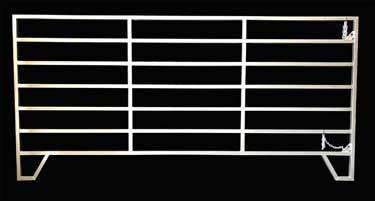

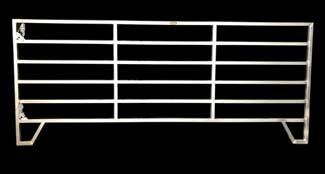

PH Panel (Galvanized)

Height:

5'-0"

Length:

6', 10', 12, or 16'

Legs:

1 1/2" Miter Cut Square Tubing 16ga.

Bars:

6 - 1 1/2" Square Tubing 16ga.

Braces:

1 1/2" Square Tubing 16ga.

Mud Leg:

Yes

Approx. Weight:

Approx. Weight - 90 lbs (10')
Approx. Weight - 108 lbs (12')
Approx. Weight - 140 lbs (16')

Key Features:

Galvanized, Heavy Duty Panel

Primary Use:

Team Roping Arenas, Calf Roping Arenas and Round Pens

PHT Panel (Galvanized)

Height:

6'-0"

Length:

6', 10', 12, or 16'

Legs:

1 1/2" Miter Cut Square Tubing 16ga.

Bars:

7 - 1 1/2" Square Tubing 16ga.

Braces:

1 1/2" Square Tubing 16ga.

Mud Leg:

Yes

Approx. Weight:

Approx. Weight - 108 lbs (10')
Approx. Weight - 130 lbs (12')
Approx. Weight - 174 lbs (16')

Key Features:

Galvanized, Heavy Duty Panel

Primary Use:

Team Roping Arenas, Calf Roping Arenas and Round Pens

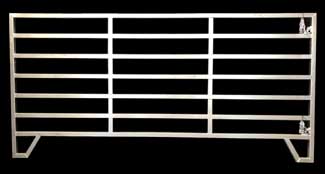

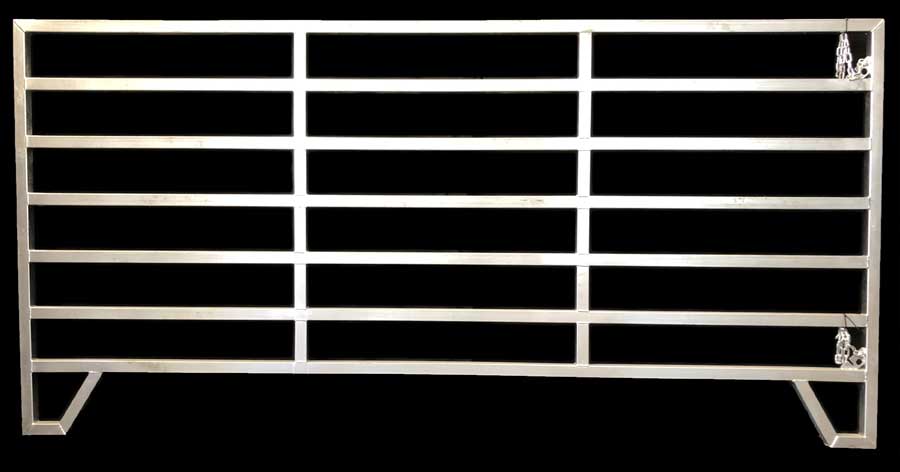

PBT Panel (Galvanized)

Height:

Length:

6', 10' or 12'

Legs:

2" Miter Cut Square Tubing 14ga.

Bars:

7 - 2" Square Tubing 14ga.

Braces:

2" Square Tubing 14ga.

Mud Leg:

Yes

Approx. Weight:

175 lbs.

Key Features:

Galvanized, "Bull Tough" Extreme Heavy Duty Panel

Primary Use:

Upper-end Roping Arenas and Round Pen
